10kv 11kv 12kv VS1 VCB Vacuum Circuit Breaker ZN63 3 Phase Trolley Draw Out AC

Place of Origin : Zhejiang, China

Brand Name : Eberry

Model Number : ZN63(VS1)-12KV-210

Packaging Details : Plywood BOX

Supply Ability : 10000 Unit/Units per Month

Price : $500.00 - $1,900.00/pieces

Certification : CE,CQC,ISO9001

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-10 days

Type : Handcart

Poles Number : 3

Rated Voltage : 12KV

Rated Frequency : 50/60hz

Product name : High Voltage Vacuum Circuit Breaker

Rated current : 630A / 1250A

Breaking capacity : 20KA~31.5KA

Rated frequency : 50/60 Hz

phase-to-phase spacing : 210mm

Mechanical Life : 20000Times

Certificate : ISO9001

Standard : IEC60947-2

Port : Ningbo or shanghai

Contact Now

ZN63 3 phase trolley draw-out AC 10kV 11kV 12kV VS1 VCB Vacuum Circuit Breaker

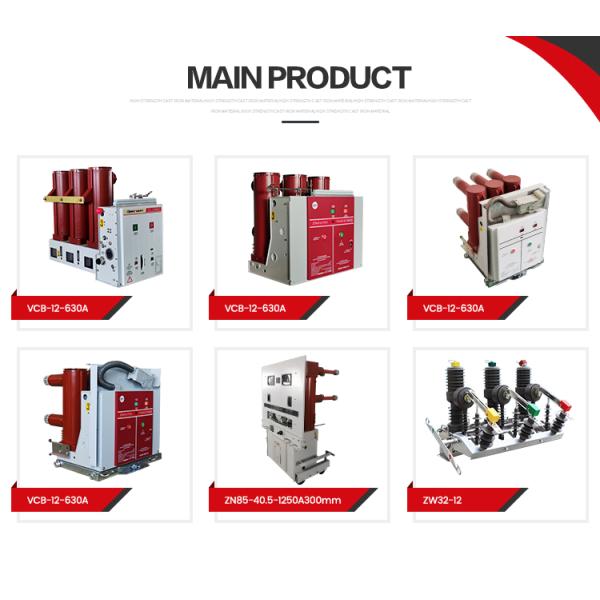

Products

VCB-12 series solid-sealed indoor vacuum circuit breaker is an indoor high-voltage switchgear for three-phase power system with rated voltage of 12 kV and frequency of 50 Hz. It is used as protection and control appliance due to vacuum circuit breaker. The special advantages are especially suitable for frequent operations requiring rated current or multiple short-circuit currents.

VCB-12 series solid-sealed indoor vacuum circuit breakers are fixedly mounted, mainly used for fixed switchgear. The circuit breaker can be used alone or in ring power supply, box transformer or various non- power supply system.

Product parameters
NO Item Units Technical parameters
1 Rated voltage KV 12
2 Rated short-duration power frequency withstand voltage 42/48(Interphase, ground/fracture)
3 Rated lightning impulse withstand voltage 42/48(Interphase, ground/fracture)
4 Rated frequency Hz 50
5 Rated current A 630 1250

630 1250 1600

2000 2500 3150

630 1250 1600

2000 2500 3150
6 Rated short-circuit breaking current KA 20/25 31.5 40
7 Rated short-time withstand voltage 20/25 31.5 40
8 Rated short circuit duration S 4
9 Rated peak withstand current KA 50/63 80 100
10 Rated short circuit closing current 50/63 80 100
11 Secondary circuit power frequency withstand voltage (1min) 2000
12 Rated single / back to back capacitor group breaking current A 630/400(40kA:800/400)
13 Rated capacitor bank closing current 12.5 (frequency is not greater than)
14 Mechanical life KA 20000
15 Rated current breaking times (electrical life) 20000
16 Rated short circuit current breaking times times 50(40KA≤30)
17 Dynamic and static contacts allow wear cumulative thickness mm 3
18 Energy storage time s ≤10
19 Contact opening distance mm 11±1
20 Overtravel 3.5±0.5
21 Contact closing bounce time ms ≤2(40KA≤3)
22 Three-phase split/closed period ≤2
23 Average opening speed (contacts are separated by -8mm) m/s 1.2±0.2
24 Main conductive loop resistance 0.6±0.2
25 Main conductive loop resistance μΩ

≤50(630A)≤45(1250A)

≤40 (1600,2000A)≤35 (2500A or more)
26 Rated operation sequence 0-0.3s-Co-180s-Co
